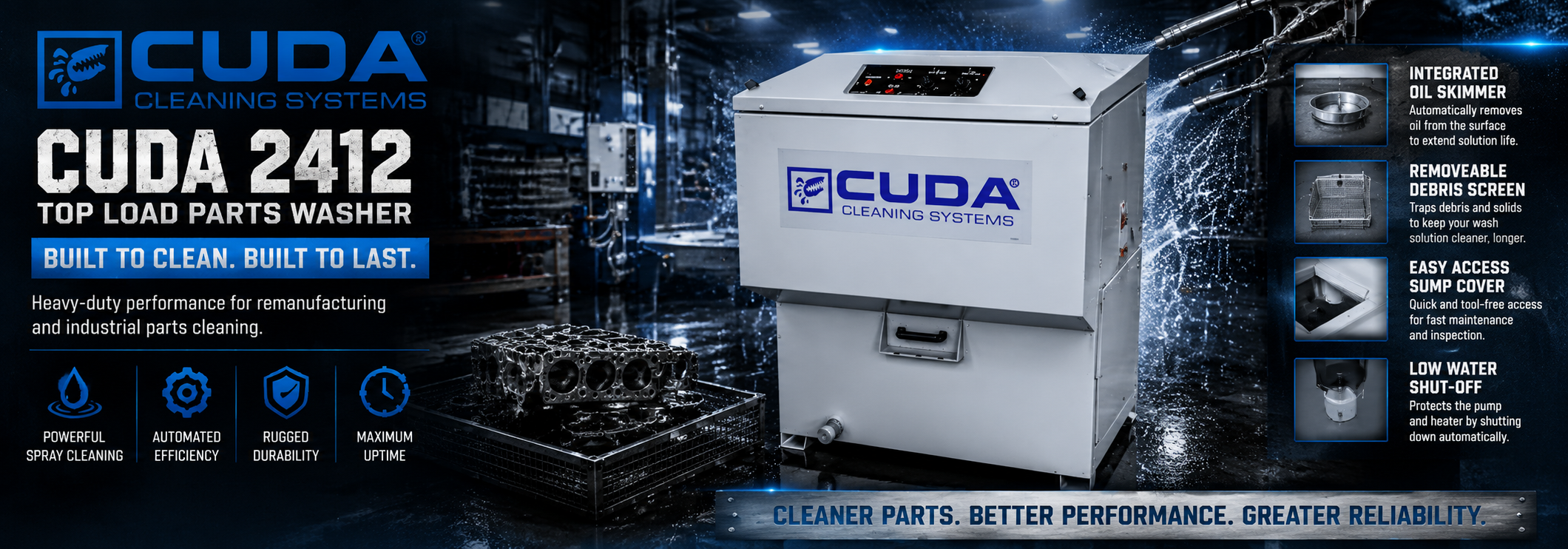

CUDA 2412 TOP LOAD INDUSTRIAL PARTS WASHER


At only 35 inches wide, the Cuda 2412 Series parts washer has a 250-lb. load capacity,
and a 24 inch turntable diameter. The Cuda 2412 Series has a 1/2 HP flush sealed pump
and an upper drive arm that rotates the turntable. It’s versatile for use anywhere in the shop.

Image result for PDF BUTTON

Click Here To Request Quotation

  • Cabinet

    Cabinet: 12 ga., Tank 12 ga., Lid: 14 ga., steel, finished with a powder coat paint finish for long life and easy cleaning. Turntable to be constructed of 12 ga. steel. Pull out debris screen located below parts basket to prevent small parts from falling into the tank. Lid will have a safety shut-off. Machine will have accommodations to allow for the following options:
    – Automatic Water Fill
    – 7 Day Heater Timer
    – 7 Day Oil Skimmer Timer
    – Detail Brush
    – Power Brush
    – Small Parts Basket
    – Containment Ring

  • Rotating Turntable

    Rotating turntable must be gear-motor driven. Rotation of turntable will provide complete spray coverage of parts being washed. Eight (8) spray nozzles will be located on the spray manifold providing overlapping coverage of parts being washed.

  • Oil Skimmer

    An oil skimmer will be provided that removes floating oils from the surface of the sump tank cleaning solution. The skimmer will be constructed with a fan cooled electric motor, stainless steel disk skimmer and dual stainless steel scraper blades.

  • Controls

    Electrical control panel shall have a 12 hour heater timer, 15 minute wash timer, on-off switch, turntable on-off switch and low water shutdown indicator light. An adjustable thermostat will control water temperature. A safety control switch will not allow pump or heater to operate if water level drops below a prescribed set point.

  • Pump

    Pump will be a centrifugal, 1/2 HP with 20 gpm (76 lpm) output at 22 psi (1.5 bar) capable of handling 190°F (88°C) water with cleaning detergents. Pump motor must have safety overload protection.

  • Heater

    Machine to have a 1.8 kW (120V), 4.5 kW (230V/1PH) immersion heating element. Heating element is to be constructed with an incoloy sheath for maximum corrosion and oxidation protection.

  • Dimensions

    – Overall Dimensions 35″W x 43″H x 35″D (89 x 109 x 89 cm)
    – Turntable Diameter 24″ Diameter (61 cm)
    – Working Height 12″ (30.5 cm)
    – Work Load 250 Lbs (113 kg)
    – Ship Weight 424 Lbs (192 kg)
    – Water Tank Capacity 25 Gallons (95 liters)

  • Options

    – Automatic Water Fill
    – 7 Day Heater Timer
    – 7 Day Oil Skimmer Timer
    – Detail Brush
    – Power Brush
    – Small Parts Basket
    – Containment Ring
